Wang Tileset LoRA

Create terrain source images for Wang tileset workflows.

Wang Tileset LoRA

Wang Tileset LoRA is built for terrain source images that will be converted into seamless Wang sets. The LoRA handles the surface design; the generator step turns that surface into usable tile logic.

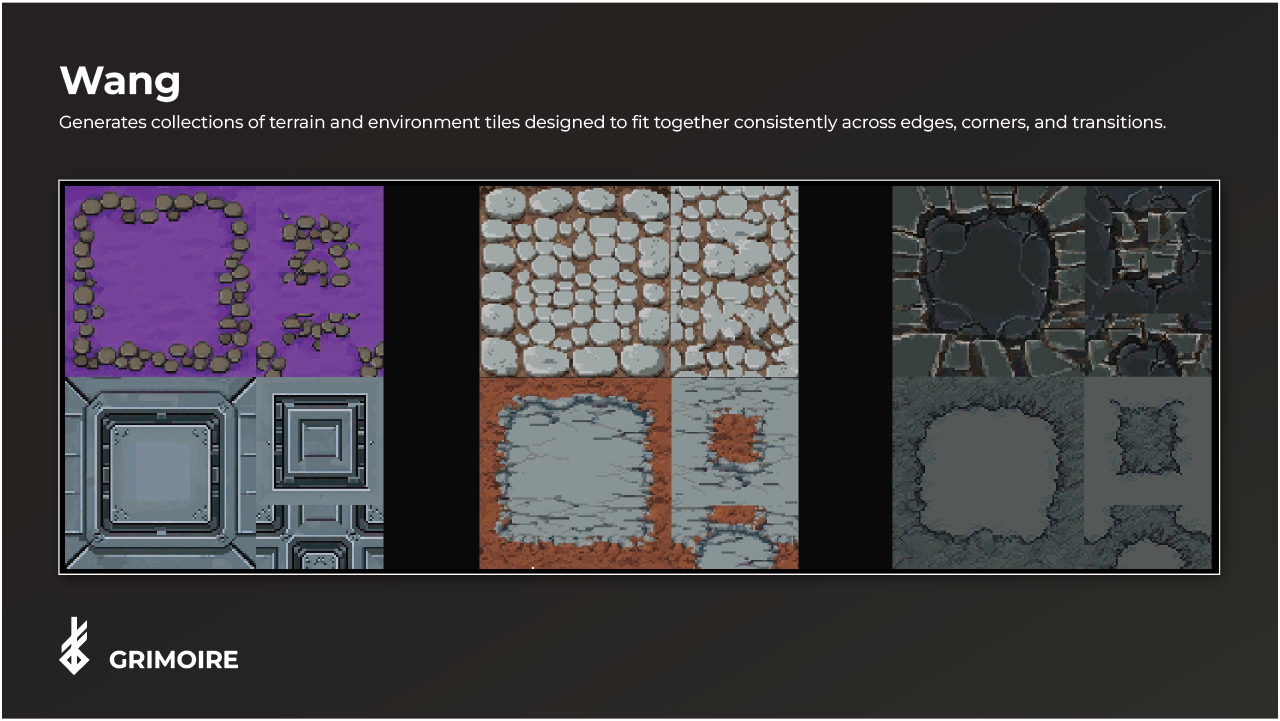

Wang Tileset LoRA example

Setting Value
CFG 7.5
Steps 30
Sampler ddim
Generation Size 768×768
Model Strength 0.8–1.0

Trigger prompt

tilemap_solid, <description>

Example prompt

tilemap_solid, volcanic ash ground, lava, light orange areas, ground texture, fine details, warm appearance

Workflow

  1. Generate the source image at 768×768.
  2. Scale the result down to 96×96 in Aseprite.
  3. Run the Wang Tileset Generator from the Tools tab to produce the final 160×96 tileset.

The image above shows the target style for the raw terrain generation.
